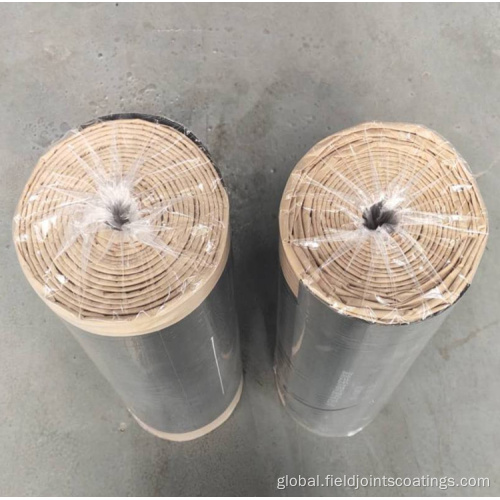

Hdd Heat Shrink Wrap Sleeves

Heat Shrink-Able Wrap Around Sleeves Horizontal directional drill heat shrink sleeves Manufactory

$ 10 /Set/Sets

Min. Order: 500 Set/Sets

Quantity:

place of originChina
gradeIndustrial Grade
FeaturesHighly resistant to shear and peel forces induced by soil and thermal movements
Advantagesabrasion and wear resistance at pull-through comparable to mill coatings.
MaterialsAdhesive Hot melt adheive
ColorBlack
StandardDIN30672
Backing MaterialsCross linked PE backing
Key pointheat shrink
Layer3PE
Typeopen type with closure patch
Thickness2.0mm,2.2mm,2.5mm

Contact Now

Description

"It is a good way to boost our products and solutions and repair. Our mission is always to establish artistic products and solutions to consumers having a excellent expertise for Heat Shrink-Able Wrap Around Sleeves Horizontal directional drill heat shrink sleeves Manufactory our qualify products and solutions have good reputation from the world as its most competive price and our most advantage of after-sale service to the clients.we hope we can supply a safe environmental goods and super service to our clients from all of the world and establish strategic partnership with them by our professional standards and unremitting efforts.

Specification

Payment Type: L/C,T/T
Incoterm: FOB,CIF
Min. Order: 500
Transportation: Ocean,Land
Port: Shanghai , Shenzhen,Qingdao
Model No.: HDD
Brand: Forever
place of origin: China
grade: Industrial Grade
Features: Highly resistant to shear and peel forces induced by soil and thermal movements
Advantages: abrasion and wear resistance at pull-through comparable to mill coatings.
Materials: Adhesive Hot melt adheive
Color: Black
Standard: DIN30672
Backing Materials: Cross linked PE backing
Key point: heat shrink
Layer: 3PE
Type: open type with closure patch
Thickness: 2.0mm,2.2mm,2.5mm

Shipping

Packaging: Rolls+carton+pallet
Transportation: Ocean,Land

Picture Example

Certificate

EXHIBITION

Science is infinite,Research are Forever” CAEP FOREVER established a city named "China Science City" in September 2000, which is located in Mianyang, Sichuan Province, China.

Forever is the birthplace of China's radiation crosslinking materials

Field joint coating failure has been known for site of corrosion damage in many gas transmission pipelines.

CAEP”, The Ninth Scientific Research Institute established in China, founded in 1958

National Rradiation Crosslinking Heat Shrinkable Material Technology Center,

pipeline radiation crosslinking heat shrinkable material technology has been extended to most of China's pipeline radiation crosslinking heat shrinkable manufacturers.

WE DO AMAZING STUFF

APPLICATION

DN 2600

China Petrol

Make Heating on the adhesive surface of closure patch

Remove the plastic film and lining paper on the heat shrinkable sleeve.

Make heating on the adhesive surface at the other end with fire

FAQ

What's the meaning for crosslinked polyolefin backing?

The radiation cross-linked polyethylene heat shrink tape consists of a three-layer structure, consisting of a substrate layer, a hot melt adhesive layer, and an epoxy primer layer from top to bottom. It is formed by hot pressing to form a whole, with the substrate layer being a polyethylene layer and the hot melt adhesive layer being a polyurethane type hot melt adhesive layer. Radiation crosslinking improves the water vapor sealing performance of the substrate, the adhesion of hot melt adhesive, the corrosion resistance of chemical media, and the cathodic stripping resistance of epoxy primer.

What's the difference for 2PE HSS and 3PE HSS heat shrink sleeves?

2PE is HSS without epoxy primer layer, 3PE HSS with epoxy primer layer

Is radiation cross-linked heat shrink tape sold in rolls or sets？

If as a set, Heat shrink sleeves size depends on the diameter of the steel pipe, epoxy primer and closure patch should be suitable for pipe diameter.If as rolls,popular size is 30M length, customers can cut the length according to their actual on-site needs.
