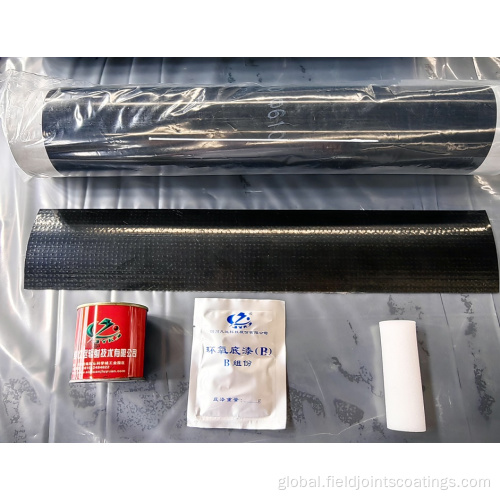

China Underground Pre-insulated pipe heat shrink sleeves Manufactory

$ 5 /Roll

Min. Order: 500 Roll

Quantity:

place of originChina
Plastic molding process typeExtruding
Processing ServiceMoulding, Cutting
Backing MaterialsCross linked PE backing
UsageField joint coating anticorrosion
HSS width300mm,350mm,450mm,500mm
Operate temperatureHTPL 65
ColorBlack
ApplicationsOil gas pipelines,onshore,offshore,
Key pointheat shrink
AdhesiveHot melt adheive
StandardDIN30672

Contact Now

Description

We intention to see quality disfigurement within the creation and supply the ideal support to domestic and overseas buyers wholeheartedly for China Underground Pre-insulated pipe heat shrink sleeves Manufactory please feel free to visit our website or contact us.

Specification

Payment Type: L/C,T/T
Incoterm: FOB,CIF
Min. Order: 500
Transportation: Ocean,Land
Port: Shenzhen, Shanghai ,Qingdao
Model No.: HSS
Brand: Forever
place of origin: China
Plastic molding process type: Extruding
Processing Service: Moulding, Cutting
Backing Materials: Cross linked PE backing
Usage: Field joint coating anticorrosion
HSS width: 300mm,350mm,450mm,500mm
Operate temperature: HTPL 65
Color: Black
Applications: Oil gas pipelines,onshore,offshore,
Key point: heat shrink
Adhesive: Hot melt adheive
Standard: DIN30672

Shipping

Packaging: Rolls+carton+pallet
Transportation: Ocean,Land

Picture Example

Certificate

EXHIBITION

Science is infinite,Research are Forever” CAEP FOREVER established a city named "China Science City" in September 2000, which is located in Mianyang, Sichuan Province, China.

Forever is the birthplace of China's radiation crosslinking materials

Field joint coating failure has been known for site of corrosion damage in many gas transmission pipelines.

CAEP”, The Ninth Scientific Research Institute established in China, founded in 1958

National Rradiation Crosslinking Heat Shrinkable Material Technology Center,

pipeline radiation crosslinking heat shrinkable material technology has been extended to most of China's pipeline radiation crosslinking heat shrinkable manufacturers.

WE DO AMAZING STUFF

APPLICATION

DN 2600

China Petrol

Make Heating on the adhesive surface of closure patch

Remove the plastic film and lining paper on the heat shrinkable sleeve.

Make heating on the adhesive surface at the other end with fire

FAQ

What's the meaning for crosslinked polyolefin backing?

The radiation cross-linked polyethylene heat shrink tape consists of a three-layer structure, consisting of a substrate layer, a hot melt adhesive layer, and an epoxy primer layer from top to bottom. It is formed by hot pressing to form a whole, with the substrate layer being a polyethylene layer and the hot melt adhesive layer being a polyurethane type hot melt adhesive layer. Radiation crosslinking improves the water vapor sealing performance of the substrate, the adhesion of hot melt adhesive, the corrosion resistance of chemical media, and the cathodic stripping resistance of epoxy primer.

What's the difference for 2PE HSS and 3PE HSS heat shrink sleeves?

2PE is HSS without epoxy primer layer, 3PE HSS with epoxy primer layer

Is radiation cross-linked heat shrink tape sold in rolls or sets？

If as a set, Heat shrink sleeves size depends on the diameter of the steel pipe, epoxy primer and closure patch should be suitable for pipe diameter.If as rolls,popular size is 30M length, customers can cut the length according to their actual on-site needs.
